Car Universal High Definition Endoscope with Phone Holder
VT18846C

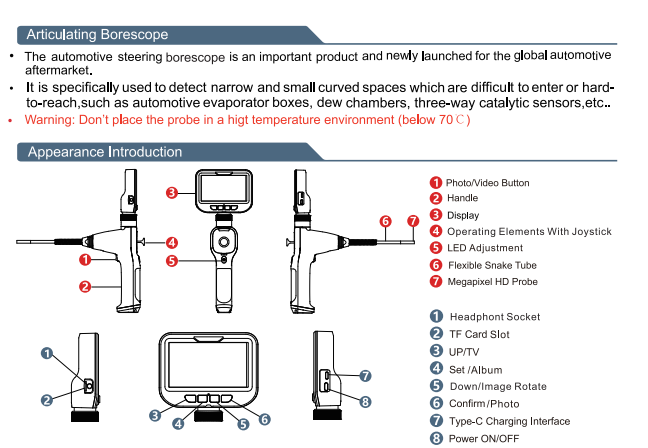

Articulating Borescope
· The automotive steering borescope is an important product and newly launched for the global automotive aftermarket.
·It is specifically used to detect narrow and small curved spaces which are difficult to enter or hard-to-reach,such as automotive evaporator boxes, dew chambers, three-way catalytic sensors,etc..
·Warning: Don't place the probe in a higt temperature environment (below 70 C)
Technical Parameters
· The automotive steering borescope is an important product and newly launched for the global automotive aftermarket.
·It is specifically used to detect narrow and small curved spaces which are difficult to enter or hard-to-reach,such as automotive evaporator boxes, dew chambers, three-way catalytic sensors,etc..
·Warning: Don't place the probe in a higt temperature environment (below 70 C)
Technical Parameters
Quantity
Articulating Borescope
· The automotive steering borescope is an important product and newly launched for the global automotive aftermarket.
·It is specifically used to detect narrow and small curved spaces which are difficult to enter or hard-to-reach,such as automotive evaporator boxes, dew chambers, three-way catalytic sensors,etc..
·Warning: Don't place the probe in a higt temperature environment (below 70 C)
· The automotive steering borescope is an important product and newly launched for the global automotive aftermarket.
·It is specifically used to detect narrow and small curved spaces which are difficult to enter or hard-to-reach,such as automotive evaporator boxes, dew chambers, three-way catalytic sensors,etc..
·Warning: Don't place the probe in a higt temperature environment (below 70 C)

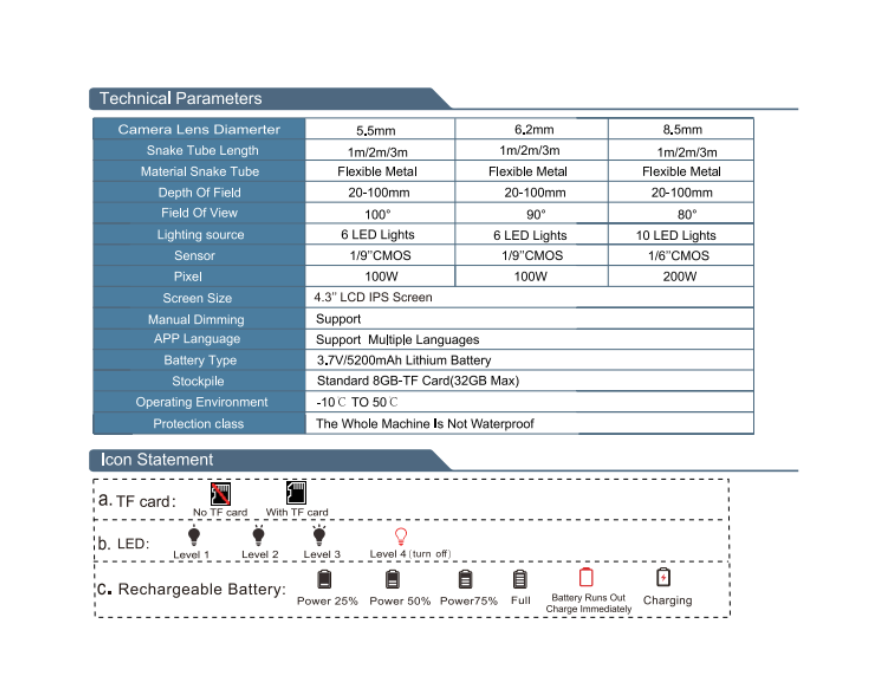

Technical Parameters
Camera Lens Diamerter 5.5mm，6.2mm， 8.5mm
Snake Tube Length 1m/2m/3m, 1m/2m/3m, 1m/2m/3m
Material Snake Tube Flexible Metal
Depth Of Field 20-100mm
Field Of View 100°，90°，80°
Lighting source 6 LED Lights
Sensor 1/9"CMOS
Pixel 100W,100W,200W
Screen Size 4.3"LCD IPS Screen
Manual Dimming Support
APP Language Support Multiple Languages
Battery Type 3.7V/5200mAh Lithium Battery
Stockpile Standard 8GB-TF Card(32GB Max)
Operating Environment -10 C TO 50 C
Protection class The Whole Machine Is Not Waterproof
Camera Lens Diamerter 5.5mm，6.2mm， 8.5mm
Snake Tube Length 1m/2m/3m, 1m/2m/3m, 1m/2m/3m
Material Snake Tube Flexible Metal
Depth Of Field 20-100mm
Field Of View 100°，90°，80°
Lighting source 6 LED Lights
Sensor 1/9"CMOS
Pixel 100W,100W,200W
Screen Size 4.3"LCD IPS Screen
Manual Dimming Support
APP Language Support Multiple Languages
Battery Type 3.7V/5200mAh Lithium Battery
Stockpile Standard 8GB-TF Card(32GB Max)
Operating Environment -10 C TO 50 C
Protection class The Whole Machine Is Not Waterproof
