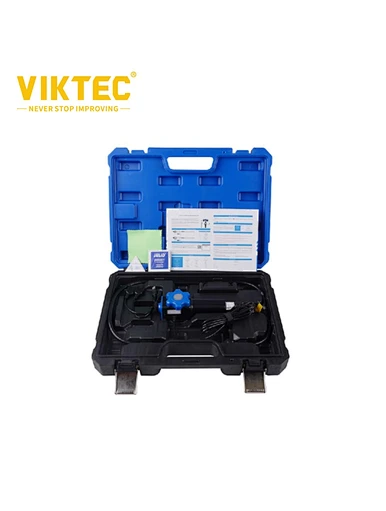

Car Borescopes is an important product for the global car aftermarket. It is specially used to detect narrow bending spaces that are difficult to enter, such as car evaporators, combustion chambers, and three-way catalytic sensors. The product has a unique temperature protection function and is equipped with a two-way 180°steering detection function, which allows users to take small probes into a small space, and transmit vivid, It can be transferred to a computer via a USB cable, or transferred to an Android phone with advanced expansion accessories to meet your diverse testing needs.
Warning: Please read this manual carefully before using this product, and follow the instructions to avoid damage caused by improper use.
Note: The probe of the product will have an alarm when the temperature exceeds 70°C. Which don't use it!

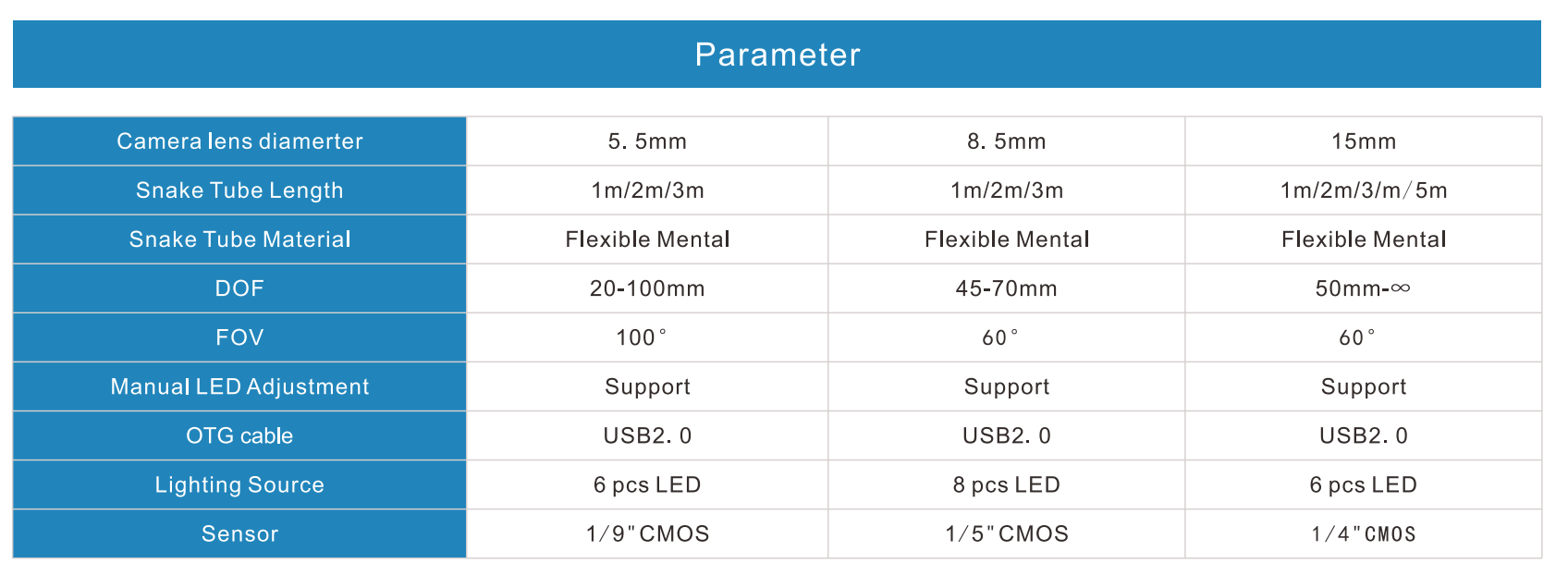

Camera diameter                   5.5mm ,8.5mm , 15mm
Coil length                             1m/2m/3m, 1m/2m/3m, 1m/2m/3m
Snake material                       Elastic metal hose
Depth of field DOF                20-100mm, 45-70mm, >50mm
Field Of View                         100°，60°，60°
Manual LED Adjusting           Support
OTG data transmission          USB2.0
Camera light source              6 pcs LED,8 pcs LED,6 pcs LED
Sensor                                   1/9"CMOS , 1/5"CMOS,   1/4"CMOS
Operating environment: snake tube -10 ℃ to 70 ℃
                     Whole machine -10 ℃ to 50 ℃
Humidity: 15% to 90% of the whole machine
Protection class: Do not operate in the rain
                     Do not operate in water
