VIKTEC Pulley Holding Tool Set Timing Locking Sprocket Wrench Camshaft Holder
VT14071
Pulley Holding Tool Set Timing Locking Sprocket Wrench Camshaft Holder
Quantity

.Camshaft Pulley Holder Tool Set specially designed for the VAG-Group (AUDI, SEAT, SKODA, VW). The wrench helps to assembly and disassembly the camshaft during replacing the timing belt. The wrench has a total length of 415 mm and a maximum jaw spread of 0-140 mm. Set makes possible to set the camshaft in the top dead centre, disassembly camshaft, change timing belt, oil pump, vibration damper, check the roller adjustment and block the crankshaft. Additional, interchangeable pins with different diameters are used for many types of pulleys. The set also includes an adaptor for locking the camshaft sprocket.

.Makes & models:
Audi A1 2011-
Volkswagen Caddy 2016-
.Engines:
3-cylinder direct injection (1.0 L, 4V, EA211, turbocharger)
4-cylinder direct injection (1.2 L, 4V, EA 211, turbocharger)
4-cylinder injection engine (1.4 L engine, direct injection, turbocharger)

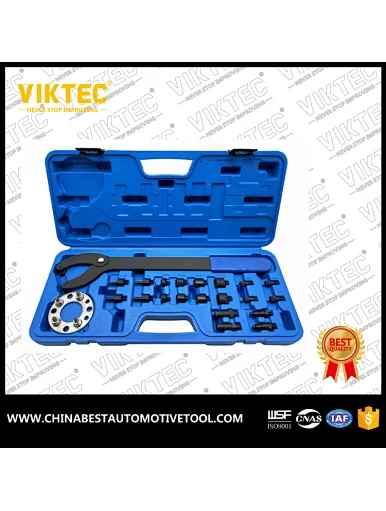

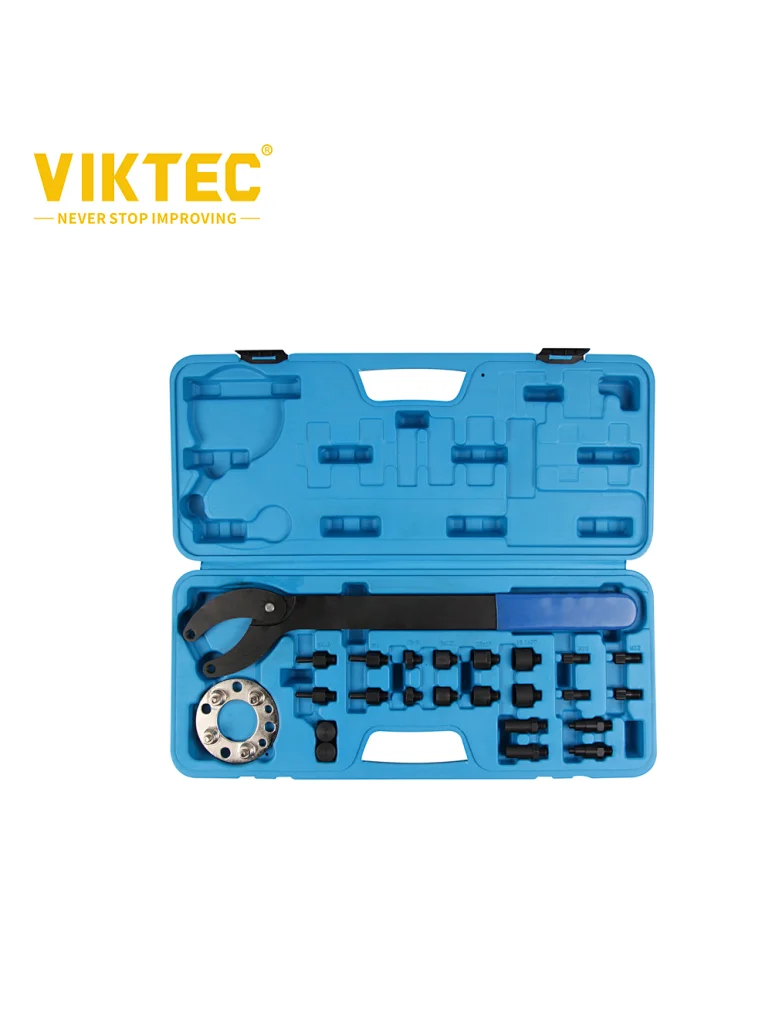

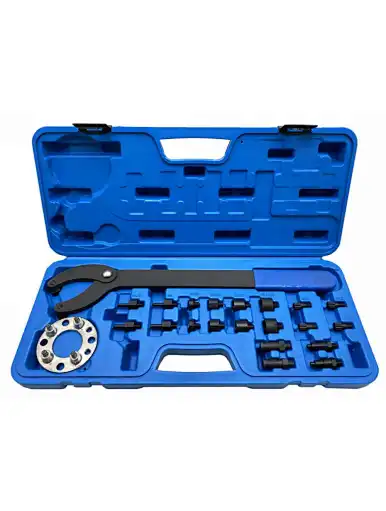

.Set includes:
1 x wrench 425 mm long and with jaw spread of 0-140 mm
1 x set: length 30 mm Ø 11.5 mm
1 x set: length 27.4 mm of 3 stage Ø 12/10/6 mm
1 x set: length 27.4 mm Ø 4.8 mm
1 x set: length 6 mm x 15 mm
1 x set: length 15 mm x 12 mm
1 x set: length 15 mm Ø 17 mm
1 x set: length 15 mm Ø 20 mm
1 x set: length 15 mm M10 - 12 point star
1 x set: length 15 mm M12 - 12 point star
1 x adaptor for locking the camshaft sprocket
