Timing Tool Set to lock down 1.3 JTD/CDTi/TDCi/DT/DTE5 diesel engines in Alfa Romeo, Fiat, Lancia, Citroën, Ford, Peugeot Vauxhall and Suzuki models. This set of tools allows the user to check and adjust the camshaft timing, remove and replace the cam chain and perform complete engine rebuilds whilst maintaining the correct position.

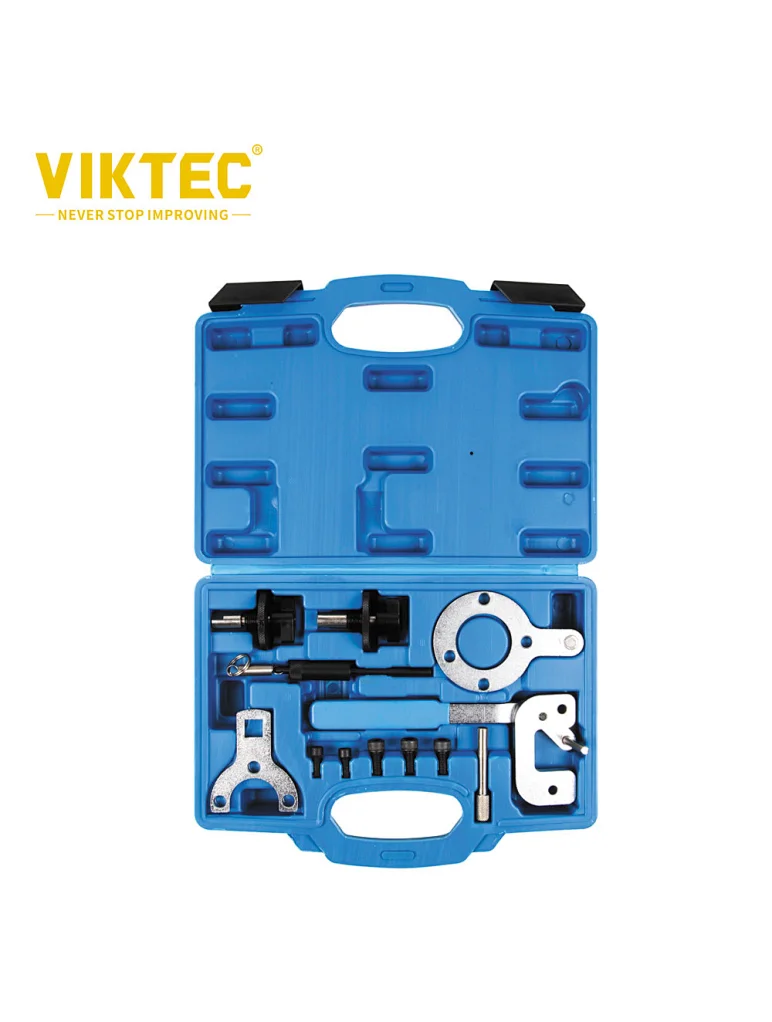

Content:

• Crankshaft Pulley Flange Holding Wrench (OEM: 1.871.000.200, 303-1469, KM-662-C)
• Timing Chain Tensioner Lever (OEM: 1.870.900.400)
• Camshaft Alignment Tool (2x) (OEM: 1.871.000.900, 1.860.985.000, 303-1472, 0104-A, EN-46781, 09917-68610)
• Flywheel Pin with Spring (GM & Suzuki) (OEM: EN-46785, 09912-38300)
• Crank Locking 8 mm (Fiat)
• Crankshaft Timing Position Tool (OEM: 1.870.900.300, 303-1468, 0104-C)

Models:

• Alfa Romeo: MiTo (2008-2016)
• Citroën: Nemo (2010-2016)
• Fiat: 500 (2007-2016), Panda (2003-2013), Punto (2003-2016), Punto Evo (2009-2012), Grande Punto (2005-2011), Linea (2007-2011), Qubo (2008-2015), Idea (2004-2012), Doblo/Doblo Cargo (2004-2014), Strada Pick-up (2006-2016), Fiorino (2008-2016)
• Ford: Ka (2009-2015)
• Lancia: Ypsilon (2003-2015), Musa (2004-2011)
• Peugeot: Bipper (2010-2016)
• Suzuki: Swift (2004-2014), Ignis (2003-2009), Wagon R+ (2003-2008), Splash (2008-2011)
• Vauxhall: Agila (2003-2008), Agila-B (2008-2010), Corsa-C (2003-2007), Corsa-D (2006-2014), Astra-H (2004-20011), Astra-J (2009-2012), Tigra-B (2004-2010), Combo-C (2003-2012), Meriva-A (2004-2010), Meriva-B (2010-2015)

Engine Codes:

• 1.3D 16v: 199A3.000, 199B1.000, FHZ(F13DTE5), 169A1.000, 188A8.000, 169A5.000, 199A9.000, 188A9.000, 199B2.000, 199A2.000, 223A9.000, 199A3.000, 263A2.000, 169A1.000(FD4), 843A2.000, (FHZ)F13DTE5, D13A, Z13DT, Z13DTJ, A13DTC, A13DTE, A13DTR, Z13DTH, Z13DTR, Z13DTi

Viktec offers a high-quality Engine Timing Tool Kit For Ford, Fiat, Suzuki, GM(VT01867). All our tools have at least a one-year quality guarantee. If you need more information about our Engine Timing Tool Kit For Ford, Fiat, Suzuki, GM(VT01867), please do not hesitate to e-mail or call us. Your inquiry will be replied to within 24 hours.
