Timing kit developed specifically for the chain driven Ford 2.2 common rail diesel engines since 2006.

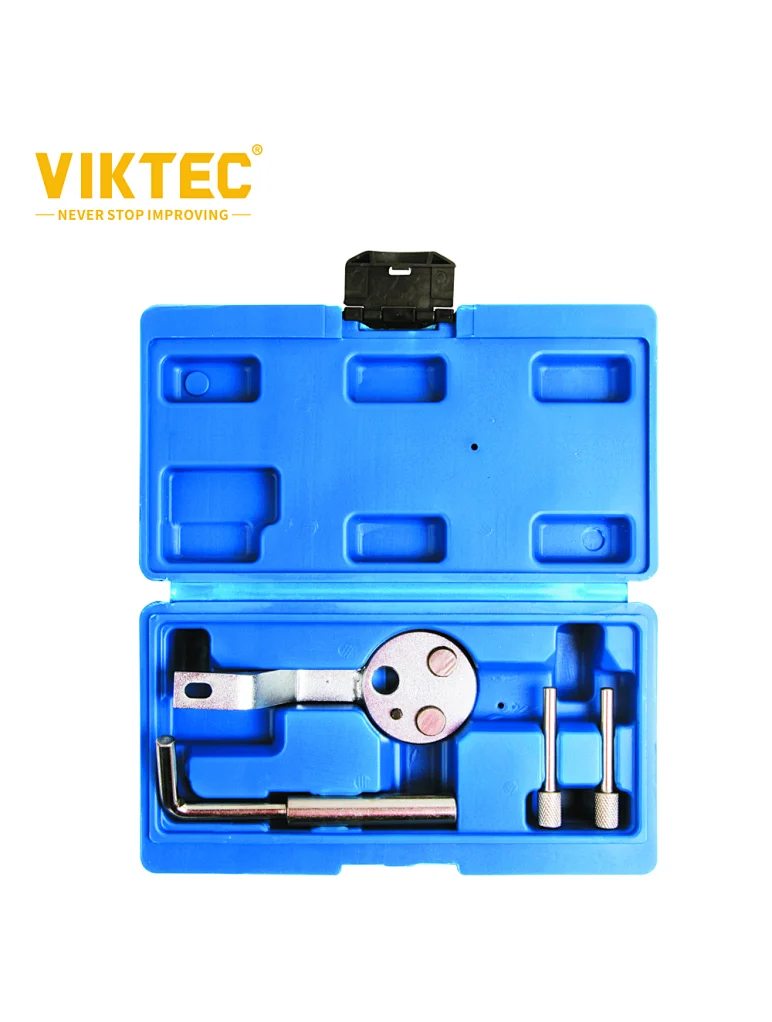

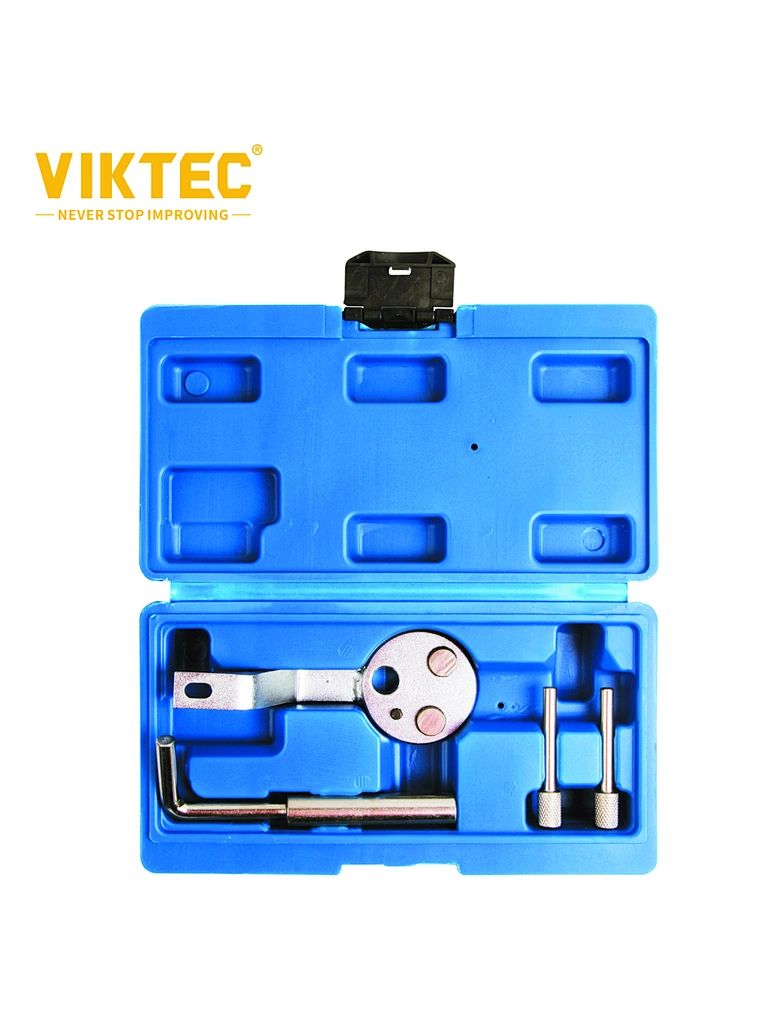

Consists of the components required to lock the crankshaft and cam sprockets in their timed position to allow the removal and replacement of the cam chain and associated components.

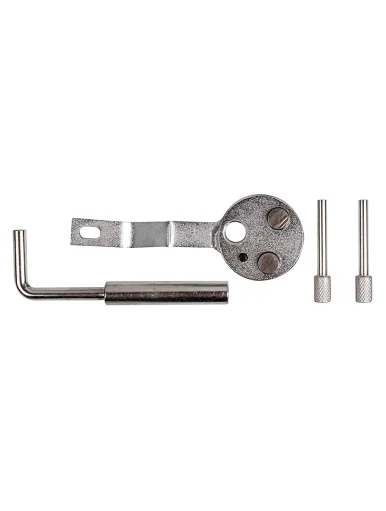

- Crankshaft Sprocket Locking Tool
- Crankshaft Alignment Pin (Flywheel End)
- Camshaft Timing Pins 6 mm (2x)
(OEM: 303-675/21-234, 303-698/21-251, 303-1587, 0188H)
- Ford Transit (2006-2018)
- Ford Ranger (2011-2018)
- Jaguar X-Type (2005-2010)
- Land Rover Defender (2011-2016)
- 2.2D TDCi: CYFA - CYFB - DRFA - DRFB - P8FA - P8FB - PGFA - PGFB - QVFA - QWFA - SRFA - SRFB - SRFC - SRFD - SRFE - UHFA
- 2.2D TDCI ECOnetic: CYFC - DRFC
- 2.2D TDCi HDT: USRA
- 3.2D TDCi: SAFA
