VIKTEC Bearing Extractor Kit

VIKTEC Bearing Extractor Kit
VT01387
NINGBO OR SHANGHAI

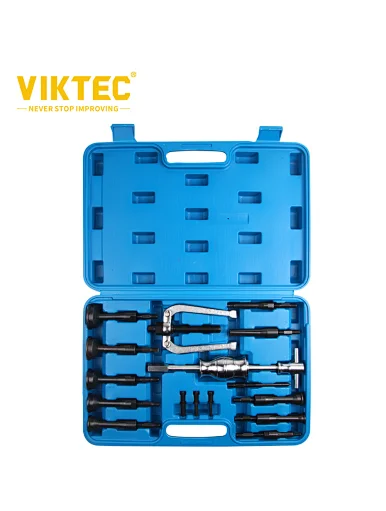

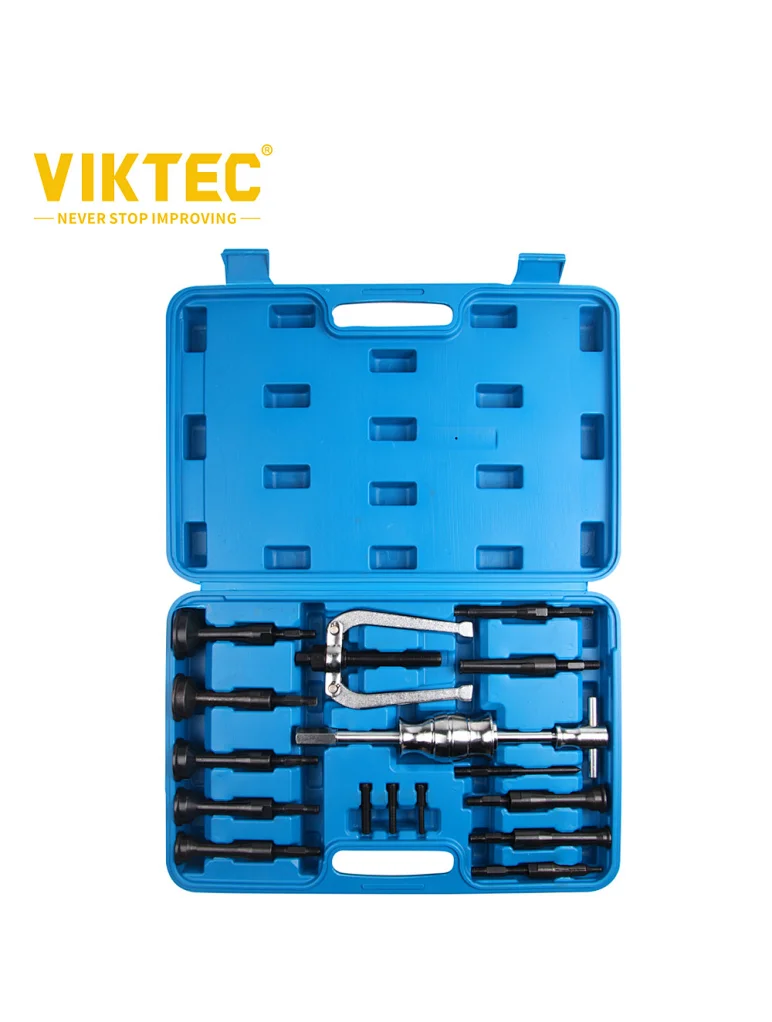

Bearing Extractor Kit
One slide hamer assemble 2.5 jaws
For removal of pilot bushes etc
Form blind housings
Quantity
  • One slide hammer assembles 2.5 jaws.
  • For removal of pilot bushes etc.
  • Form blind housings.


Include:
10- Collects (segment grip type):
8 -11mm, 12-17mm, 18-23mm,
24-29mm, 30-34mm, 34-38mm,
39-43mm, 44-48mm, 49-53mm,
54-58mm
3- Screw Adapters: M10x1.5p, M10x1.5P / M8x1.25p, M10x1.5p / M6x1.0p
1- Sliding Hammer
1- Puller

Direction:
Remove with a slide hammer
1. Insert a suitable-sized stud into the blind hole.
2. Connect the stud to the slide hammer, and make sure they are securely connected.
3. Slide the weight on the hammer until the bearing comes out from the blind hole.

Remove with a claw puller
1. Insert a suitable-sized stud into the blind hole.
2. Connect the stud to the claw puller, and make sure they are securely connected.
3. Use a spanner to fasten the stud on the claw puller until the bearing comes out from the blind hole.

Viktec could offer different Bearing Extractor Kit, Bearing Extractors, Puller Tools, Injector Puller Removal Tool, and Bearing Puller Tools.
Welcomes any OEM & ODM orders of Bearing Extractor Kit, Bearing Extractor, Puller Tools, Injector Puller Removal Tool, Bearing Puller Tool
Waiting for your inquiries on Bearing Extractor Kit, Bearing Extractor, Puller Tools, Injector Puller Removal Tool, Bearing Puller Tool
