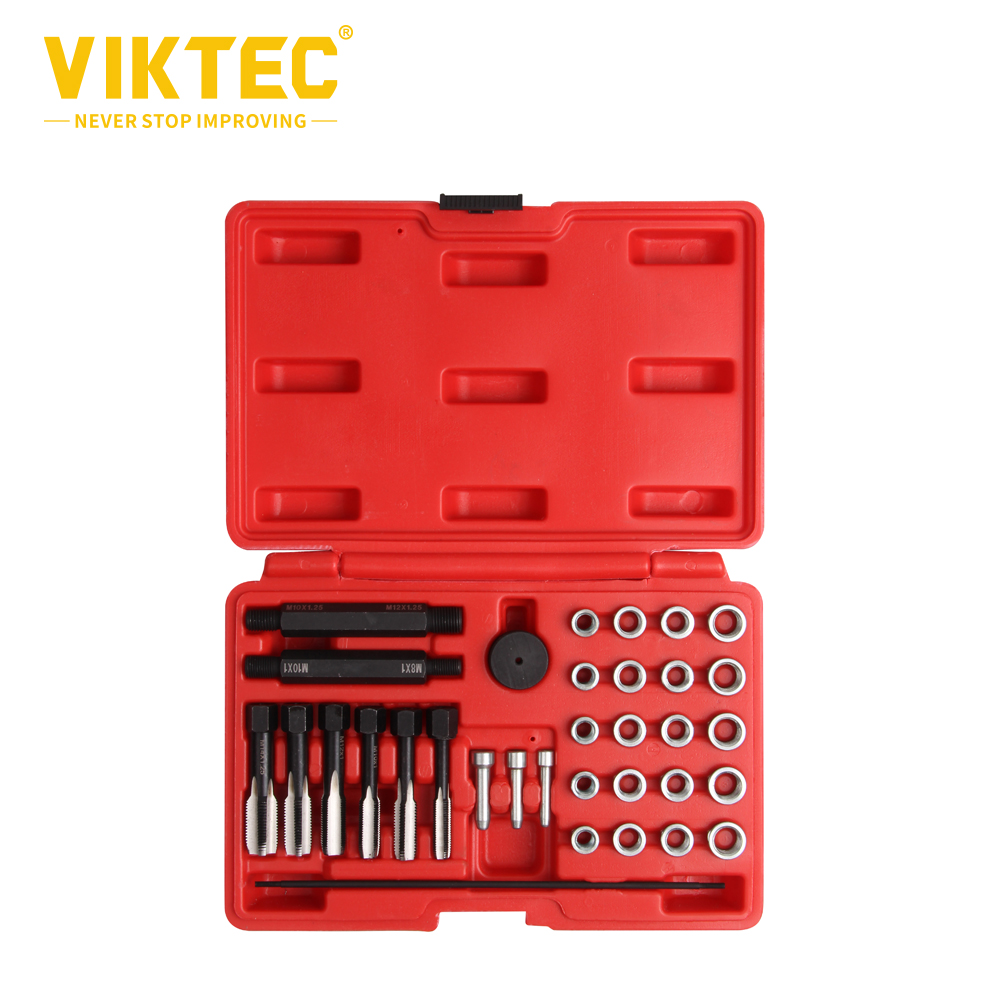

VIKTEC 28pc Glow Plug Thread Repair Tool Set For Volkswagen and Audi VAG Group
VT14066
EXW NINGBO
100
NINGBO OR SHANGHAI
45Day
28pc Glow Plug Thread Repair Tool Set For Volkswagen and Audi VAG Group
Quantity

.28 piece glow plug thread repair tool set for VW/ Volkswagen and Audi cars - VAG Group. .Professional and quick drilling out damaged or torn-off glow plugs without removing the cylinder head. Allows re-cutting or repairing glow plug thread and cleaning electrode bore. Exact depth and drilling angle are reached using guide sleeves. Supplied in carry-case.

.Makes & models:
Volkswagen
Passat
Audi
V6 TDI

.Set includes:
- cover plate for intake ports
- compressed air adapter for injector bore
- 9.1 mm drill for M10 x 1
- 11.1 mm drill for M12 x 1
- tap with guide sleeve for M10 x 1 threads
- tap with guide sleeve for M12 x 1 threads

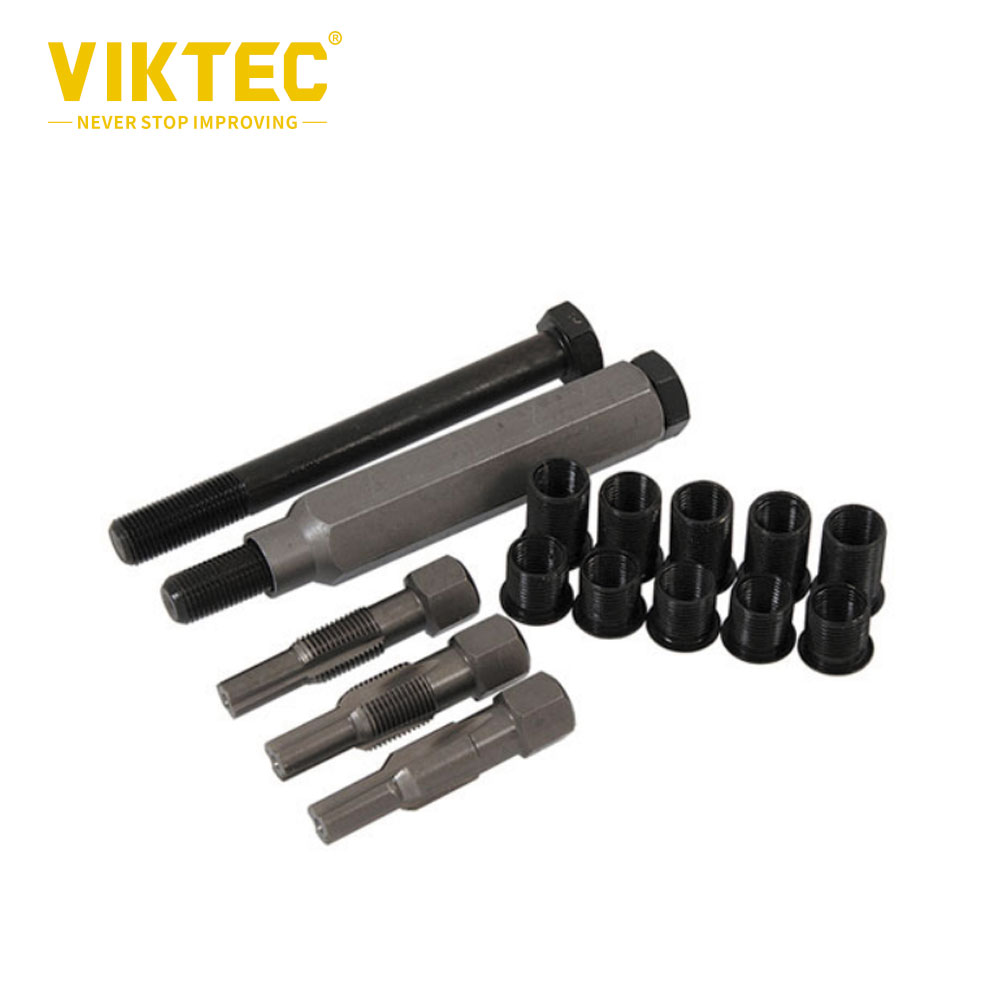

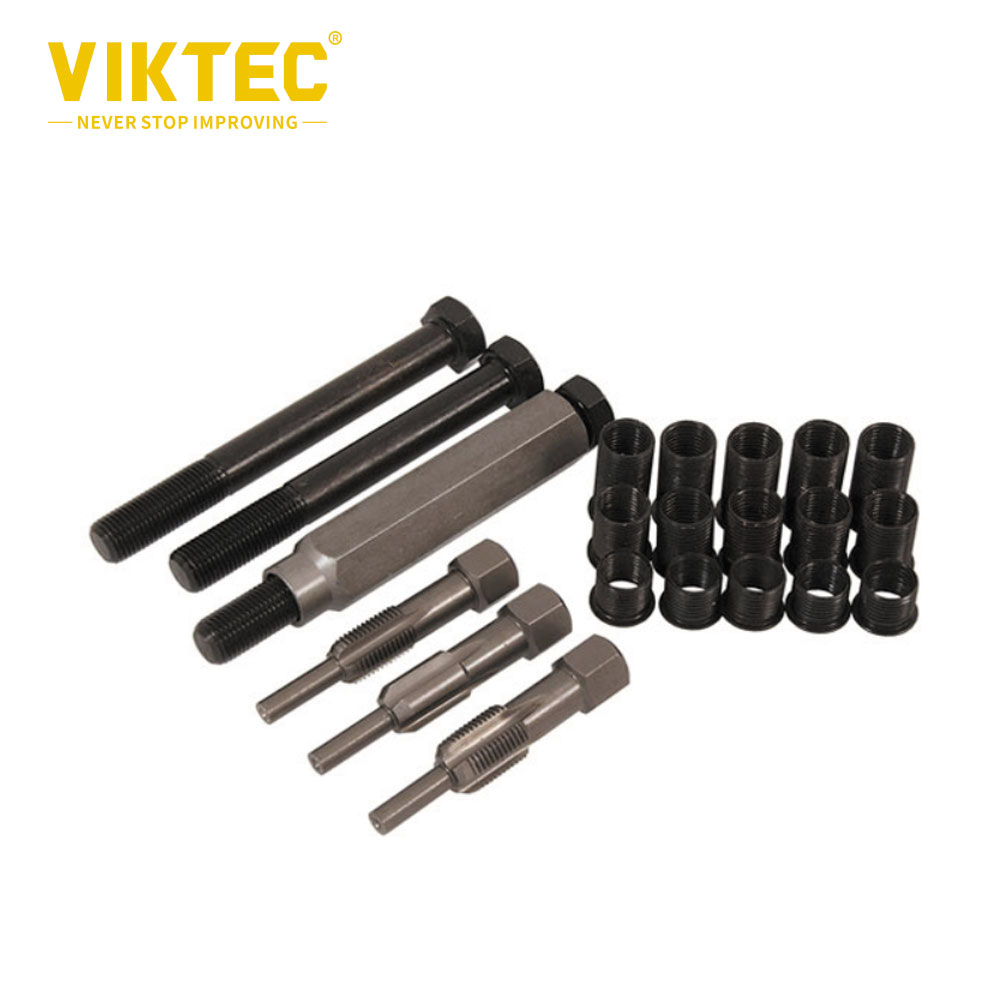

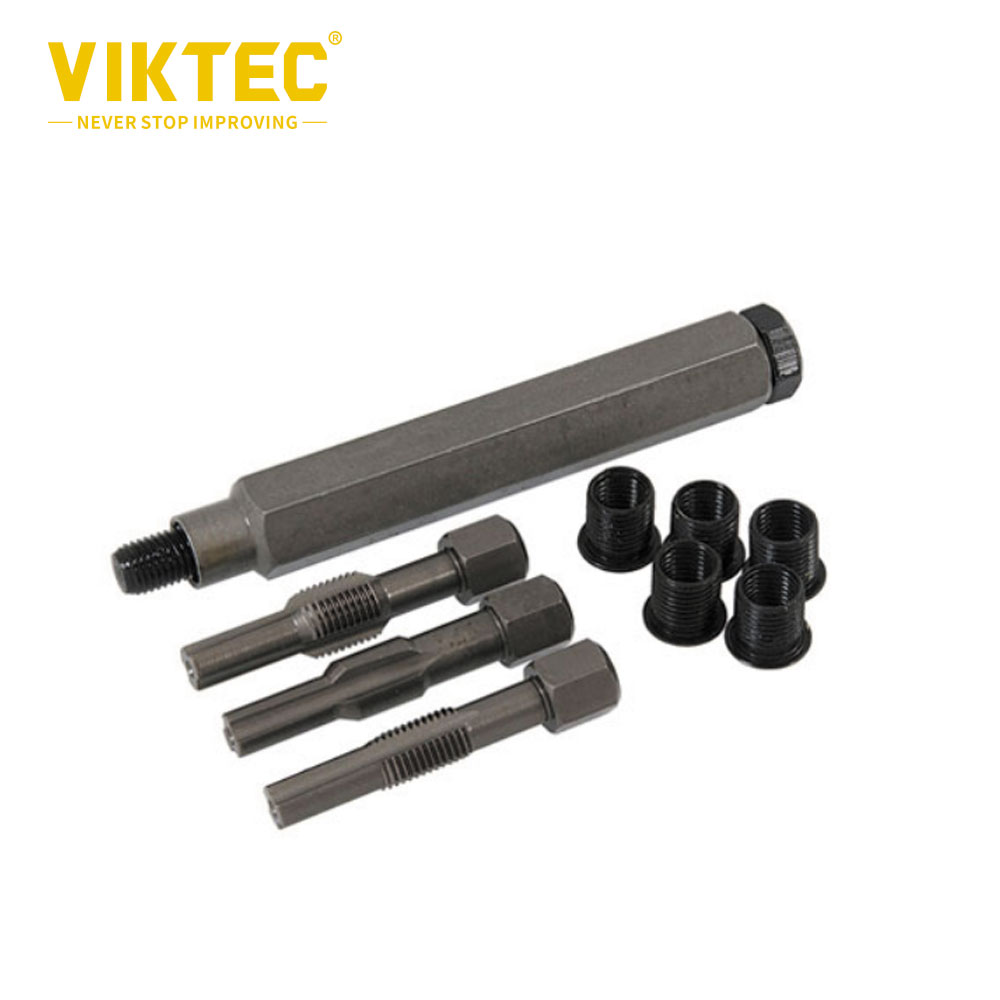

- 10 threaded inserts for M10 x 1 with external thread M12 x 1
- M6 x 1.25 taps
- extraction tool
- 2 reamers 4.8 mm, long and short type
- reamer 5.8 mm long type
- 2 guide sleeves Ø 17,5 mm and inside Ø 9 mm and Ø 13 mm - 38 mm length
- 1 guide sleeve Ø 17,5 mm and inside Ø 13 mm - 63 mm length
- 2.4 - 5.5 mm tapping holder 240 mm long with 1/4"drive
- 3 extractor electrodes for 2.5 - 3.5 - 4 mm

.Engines:
2.5l, 2.7l and 3.0l

.Engine codes:
AFB, AKE, AKN, ASB, AYM, BAU, BCZ, BDG, BDH, BFC, BKN, BKS, BMK, BNG, BSG, BUN, BUG
