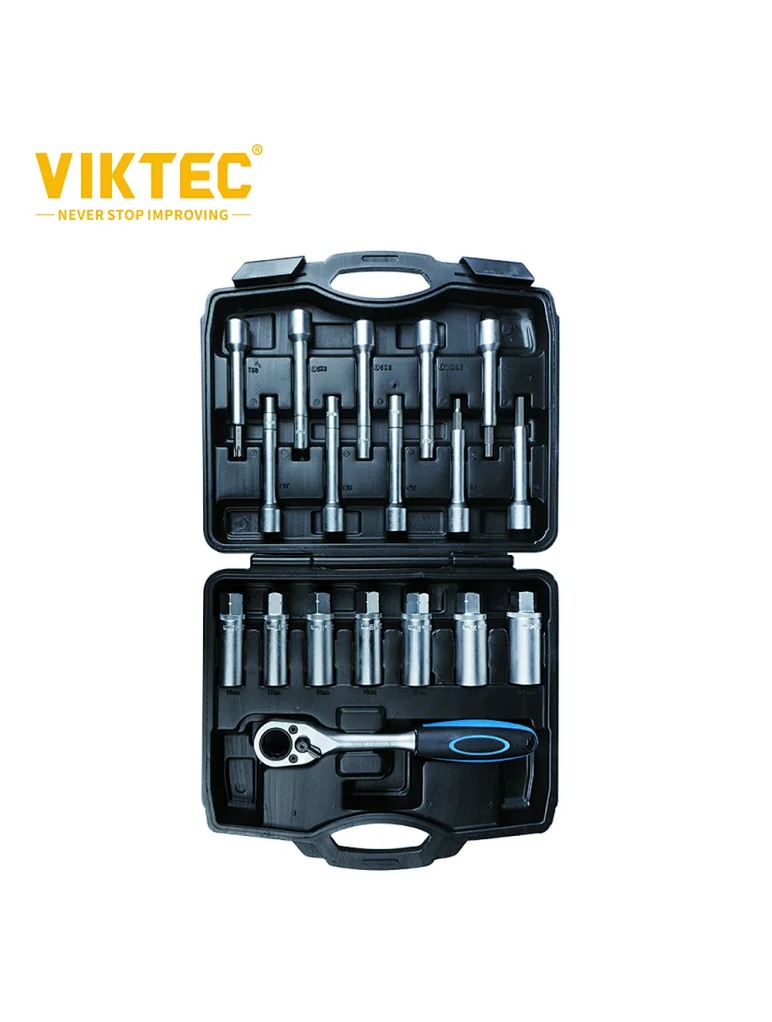

VIKTEC 18pcs Spring Strut Tool Set

VIKTEC 18pcs Spring Strut Tool Set
VT01838
18PC Spring Strut Tool and Shock Adsorber Tool Set
Quantity

Product Feature:
.For repair work at the spring strut, shock absorber, removing strut unit.

.For retaining the piston rod when installing and removing strut unit.

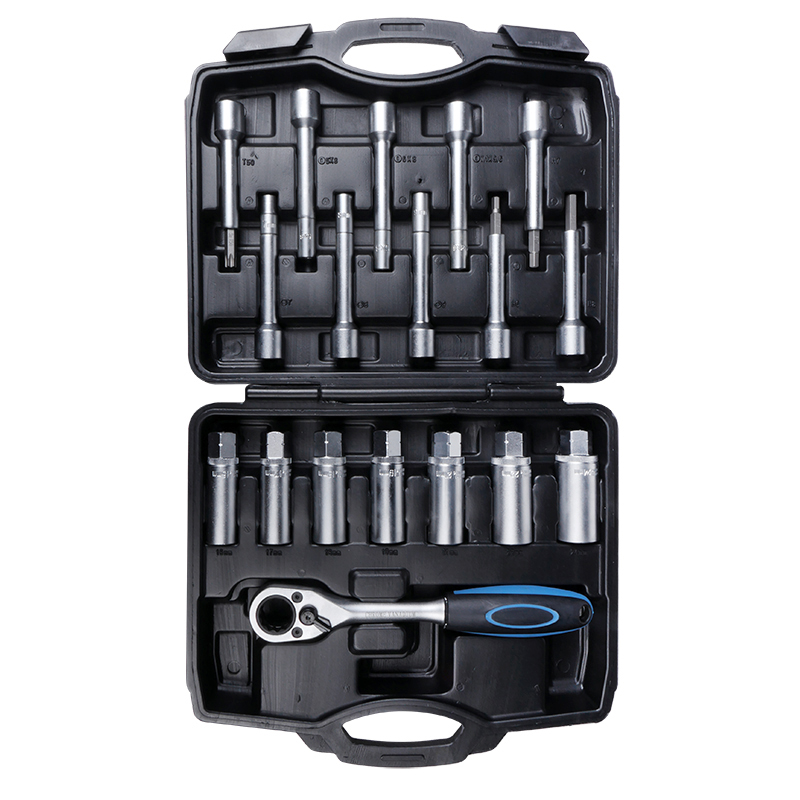

.Kit includes:
1PC Hex Go Thru' ratchet
7PC Go-Through 6PT Deep Socket 16, 17, 18, 19, 21, 22, 24mm length 82 mm
3PC Extension Socket Bit Hex 6,7,8mm length 122 mm
3PC Extension Socket Oval 5x8, 6x8, 7.1x9.6mm length 122 mm for Porsche Cayenne, VW Touareg etc
1PC Extension Socket Bit T-Star T50 length 122 mm for Opel Astra H etc
3PC Extension 6PT Socket 7,8,9mm length 122 mm

How To Use This Tool:
1st step: Choose the suitable extension socket and Go-through deep socket according to the requirement.

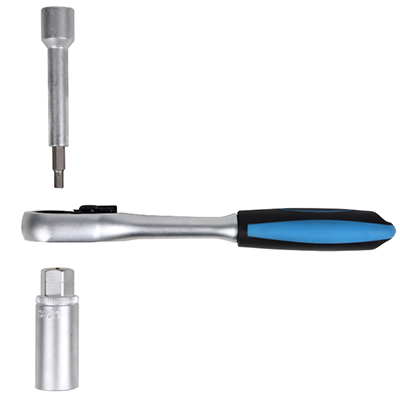

2nd step: Put the Go-through ratchet on the Go-through deep socket and then put into the extension socket into the deep socket (Picture1).

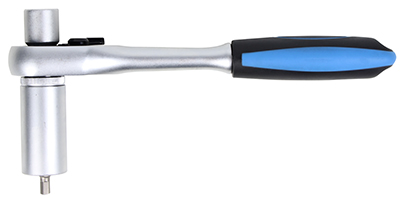

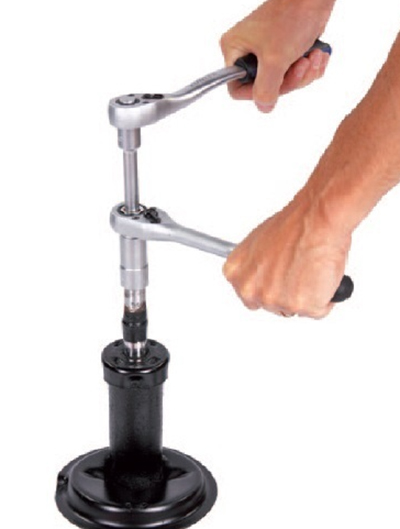

3rd step: Lock the extension socket and turn round the Go-through ratchet to remove the shock adsorber(Picture 2).


Using Pictures:
picture 1

picture 2
