.Used for removing gears, races bearings sprockets and pullers assemble up to different pullers and separators.
.Tool set will operate as 2-jaw or 3-jaw gear puller for lengths of 4", 6"or 8"in a huge range of sizes, from a small passenger car to trucks.
.Replacement of gears, bearings, balancers easily effected.
.This hydraulic puller set is efficient, convenient and durable.

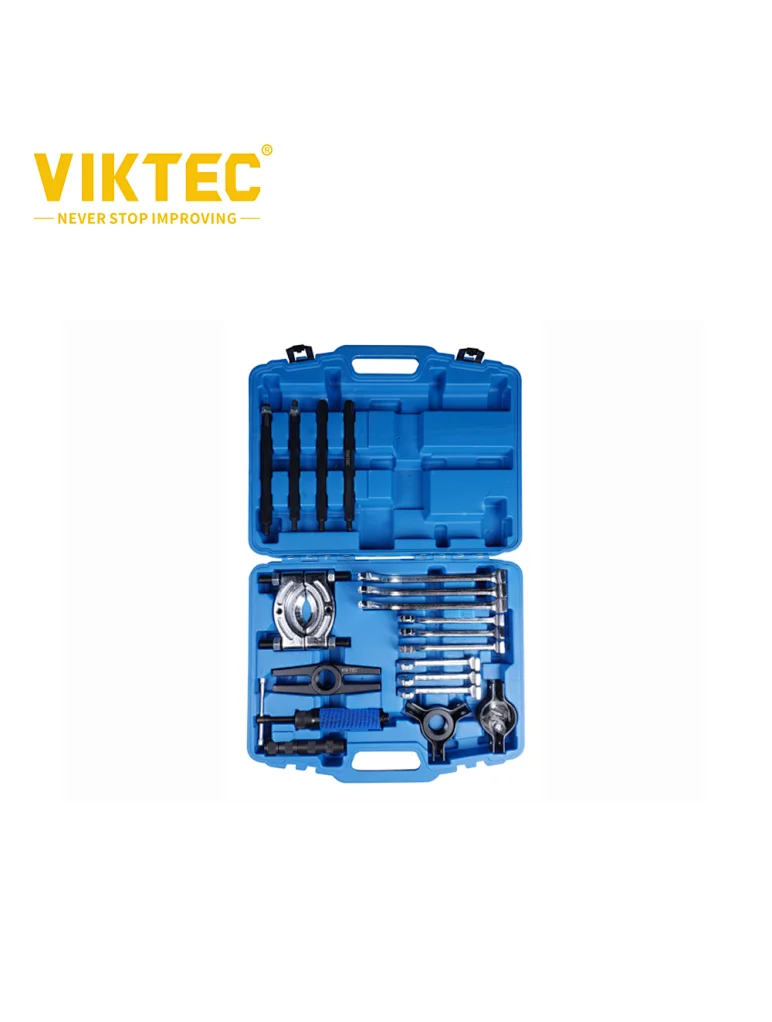

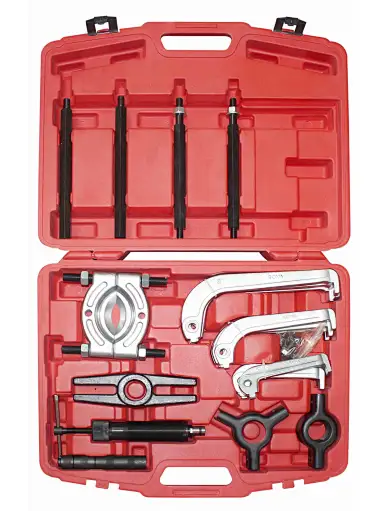

10 Ton Hydraulic Ram
Twin Head Adapter for using as a 2 jaw puller
Triple Head Adapter for using as a 3 jaw puller
Two-way Cross Beam
3 x Gear Puller Legs/Jaws 100mm (4'')
3 x Gear Puller Legs/Jaws 150mm (6'')
3 x Gear Puller Legs/Jaws 200mm (8'')
2 x Main Rods
2 x Extension Rods
Center Extension Adapters 20 - 35 - 85mm
Bearing Separator 75-105mm
How To Use This Tool:
.Choose the suitable size of the puller according to different gear or bearing.

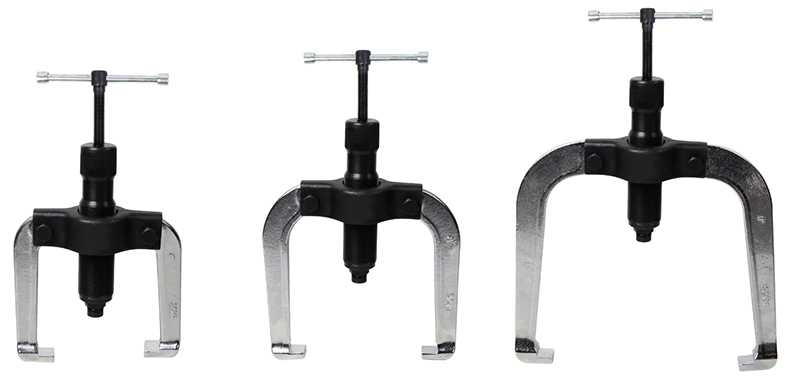

.Fix the gear pullers into twin head adapter or triple head adapter(Picture 1).
.Put the hydraulic ram into the thread of twin head adapter or triple head adapter(Picture 1).

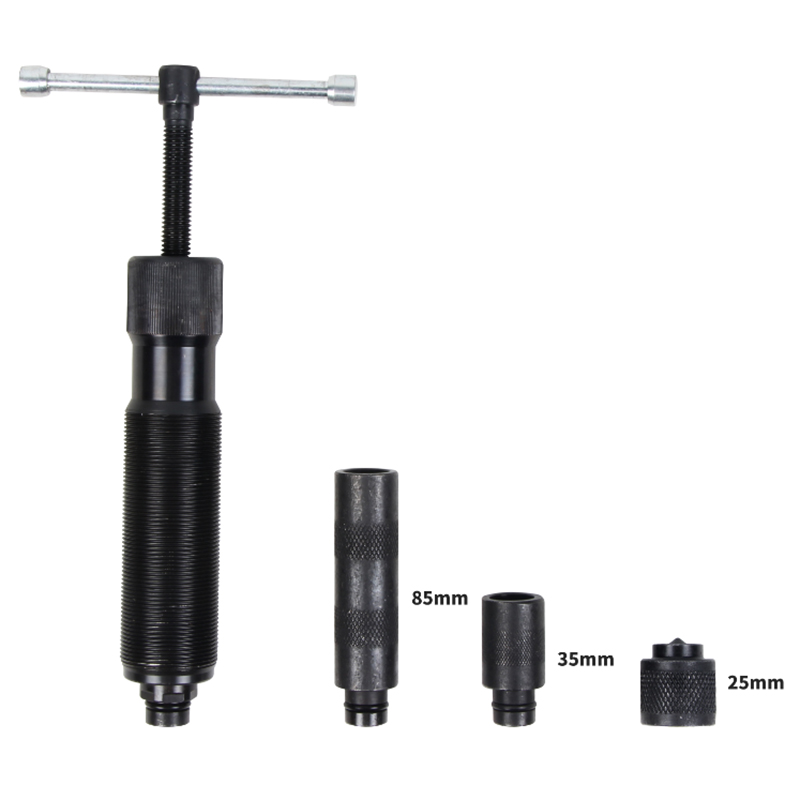

.Choose the suitable center extension adapters(Picture 2)

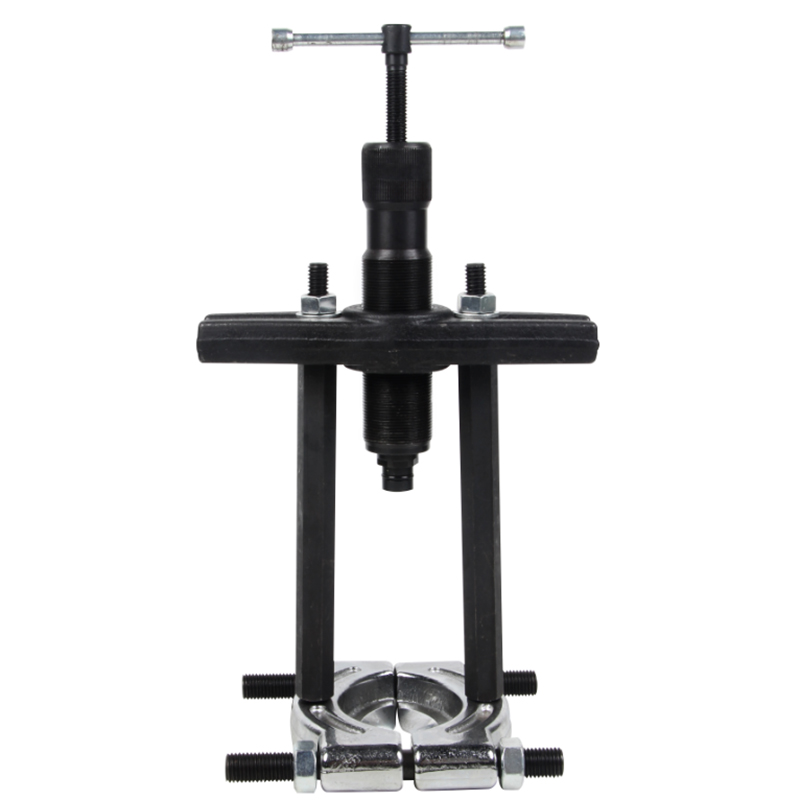

.For the bearing separator use: fix the bearing with the main rods(Picture 3).

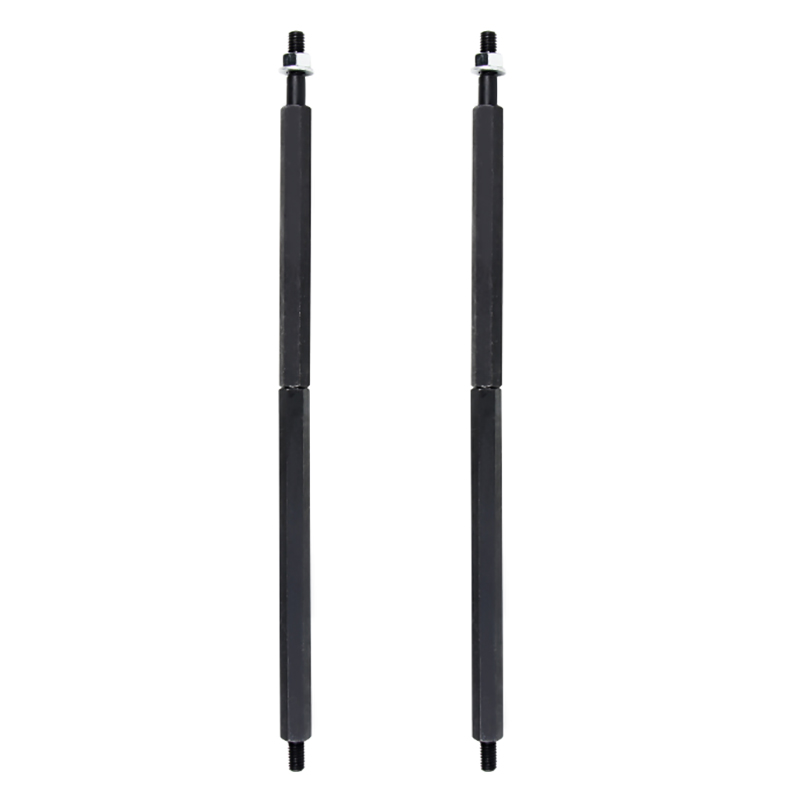

.Choose the extension rods according to requirement(Picture 4).
.Put the hydraulic ram into the thread of two-way cross beam.
