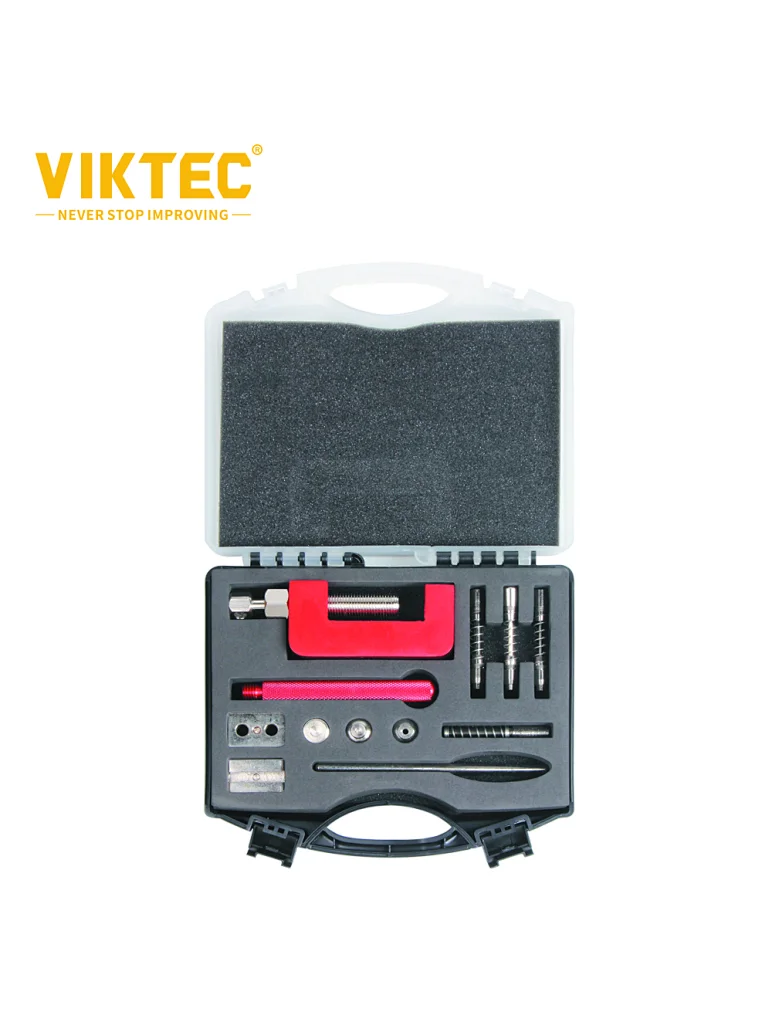

VIKTEC Demolition Chain Breaker and Riveting Tool Set Motorcycle Tool Set
VTN1420
1
Product feature
Universal application for use on motorcycle drive chains and cam chains on cars
For Breaking and Joining most drive chains with a diameter of 35 to 630.
Kit includes 3 pin sizes to fit most chains: 2.2, 2.9 en 3.8 mm.
Recommended for light to medium-duty use.
For riveting hollow nose master links.
Patent product.
Pins are designed
Pins Material: Alloy Steel
Universal application for use on motorcycle drive chains and cam chains on cars
For Breaking and Joining most drive chains with a diameter of 35 to 630.
Kit includes 3 pin sizes to fit most chains: 2.2, 2.9 en 3.8 mm.
Recommended for light to medium-duty use.
For riveting hollow nose master links.
Patent product.
Pins are designed
Pins Material: Alloy Steel
Quantity
.Universal application for use on motorcycle drive chains and cam chains on cars.
.For Breaking and Joining most drive chains with a diameter of 35 to 630.
.Kit includes 3 pin sizes to fit most chains: 2.2, 2.9 and 3.8mm.
.Recommended for light to medium-duty use.
.For riveting hollow nose master links.
.Patent product.
.Pins are designed.
.Pins Material: Alloy Steel.

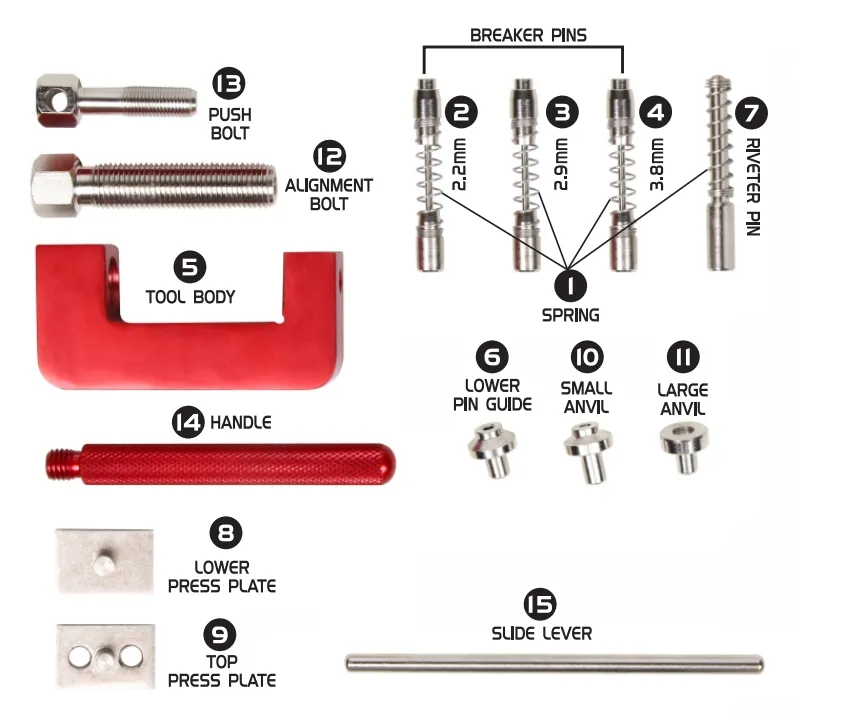

Packing List
3. 2.9mm breaker pin for use with 420 size chains
4. 3.8mm breaker pin for use with 428, 520, 525, 530(50), 532, 630 size chains
5. Tool body
6. Lower pin guide for use with 2.2mm pin
7. Riveter pin
8. Lower press plate -slotted-for use on 520, 525, 530(50) size chains
9. Top press plate -2holes-foruseon520, 525, 530(50) size chains
10. Small anvil for use while riveting link on cam chain
11. Large anvil for use while riveting link on 520, 525, 17530(50), 532, 630 size chains
12. Alignment bolt
13. Push-bolt
14. Handle
15. Slide lever
Instruction:
The following parts are available for replacement:
Spring for use with all pins and riveter 449335
2.2mm breakerpin for use with cam chains 422236
2.9mm breakerpin for use with 420 size chains 422237
3.8mm breakerpin for use with 428, 520, 525, 530(50), 532, 630 size chains 422238
Riveter pin 449324
Large anvil for use while riveting link on 520, 525, 530(50), 532, 630 size chains 449336
Warning：
DO NOT USE POWER TOOLS at any time to tighten or loosen any part of this tool.
Every procedure performed with this tool should only be done by hand using the supplied slide lever or a 14mm wrench. Do not use a wrench extension or breaker bar. Doing so may damage the tool.
Be sure the tool is clean before each use. Tool threads should be lubricated to ensure smooth operation and to allow tactile feel for any binding or excessive tension while in use.
Improper use or installation may result in damage to the chain and/or total chain failurecausing damage to the vehicle and/or severe injury or death.
It is recommended that only qualified motorcycle service technicians attempt any chain modification.
Proper selection of the correct breaker pin is critical. Please refer to the list below for the correct breaker pin size.
2.2mm breaker pin for use with cam chains
2.9mm breaker pin for use with 420 size chains
3.8mm breaker pin for use with 428, 520, 525, 530(50), 532 and 630 size chains
When breaking a chain size 520, or larger it is recommended-but not necessary-to grind off the rivet head of the chain roller pin. Doing so can minimize stress on the tool and may help reduce the chance of damaging the breaker pin.

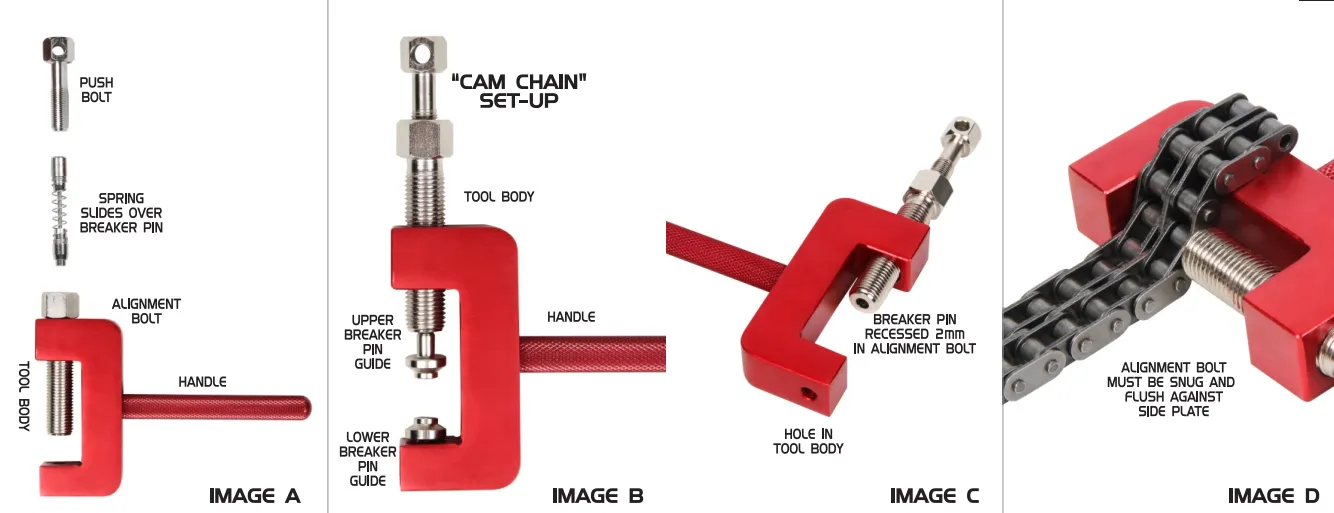

Assemble the tool as shown in Image A
1. Thread the alignment bolt into the tool body.
2. Choose the correct breaker pin for the chain that it is being used on.
3. Slide the spring up the shaft of the correct breaker pin.
4. If you are breaking a cam chain you must thread the upper pin guide on to the alignment bolt and insert the bottom pin guide into the tool body hole as shown in Image B.Use of the 2.2mm breaker pin without the guides will damage or destroy the breaker pin. NOTE：Be sure to cover the cam chain tunnel with a clean ragor towel to prevent parts from dropping in.
5. Insert the breaker pin and spring into the alignment bolt.
Warning:
6. Thread the push-bolt into the alignment bolt. Only thread afew turns. DO NOT tighten. The breaker pin should still be recessed in the alignment bolt at least 2mm as shown in ImageC.
Place the tool over the chain as shown in Image D and proceed to break the chain.
1.The breaker pin must be recessed in the alignment bolt at least 2mm. If less than 2mm alignment bolt may bind
2. Place one side of the chain roller pin in the center of the hole in the tool body.
3.On the opposite side of the link ， lower the alignment bolt over the chain roller pin.
4. Tighten the alignment bolt by hand or with a14mm wrench for a snug, secure ft DO NOT overtighten .The alignment bolt must be flush with the chain side plate . Over tightening may mis align the chain rollerpin causing damage to the breaker pin. The alignment bolt will self-center over the chain roller pinas it is secured .
5. Begin to tighten the push-bolt using the supplied slide leverora14mmwrenchtodrve out the chain rollerpin. There will be some tension on the bolt as you begin to drive out the chain roller pin. This should feelsmooth and not take alot of force or effort. If you feel it is taking too much effor, STOP loosen the push-bolt, then loosen the alignment bolt, and restart at step1. lf too much force is used the breaker pin may be damaged or destroyed. The effort will essen as the chain roler pin is driven out. The chain roller pin will fall out of the tool body hole when completed .
6. After the chain roller pin has been successfuly removed loosen the push-bolt completely.
7. Loosen the alignment bolt to remove the tool from the chain .
Warning:
Every chain is different. Please refer to the chain manufacturer for the proper installation of the rivet link.
This tool is designed to rivet master links with a hollowed end on the chain roller pin.(No solid pins) NEVER reuse a rivet link!
Proper selection of the correct anvil is citical Please refer to the list bellow for the correct anvil size.
Small anvil for use while riveting link on cam chain
Large anvil for use while riveting link on520，525，530(50)， 532 and 630 size chains
Assemble the tool as shown in Image G.
Thread the alignment bolt into the to olbody.
Slide the spring up the shaft of the riveter pin .NEVERusethebreakerpin.
Insert the riveter pin and spring into the alignment bolt.
Thread the push bolt into the alignment bolt. Only thread afewturns.DONOTtighten. The riveter pinshould still be recessed in the alignment bolt atleast 2mmasshowninImageH.
5.Select the correct anvil for the chain size being riveted and insert it into the hole of the to olbody.(Image6)Place the tool over the chain as shown in Image land proceed to rivet the chain roller pin.
1.The riveter pin must be recessed in the alignment bolt atleast 2mmasshowninImageH.
If less than 2mmaliqmentboltmaybind.
Insert the backside of the chain roller pinto be riveted into the center of the anvil
Lower the alignment bolt over the chain roller pinto be flared and riveted .(Imagel)
Tighten the alignment bolt by hand or with a14mmwrenchforasnug， secure t.DONOTovertighten.The alignment bolt must be flush with the chain side plate . Over tightening may cause pindamage.
The alignment boltwillself- center over the chain roller pinasitissecured.
5.Begin to tighten the push bolt using the supplied slide lever，ora14mmwrench，tofl are out the tip of thehollow chain roller pin.Donotovertighten. Tighten a littlebit at a time and check the amount of flare often .Do not over flare the chain roller pin.Doingsomay damage the to ol， chain roller pinand/orsideplate.A properly riveted chain roller pin wll flare just enough to secure the side plate .Thiisa very small flare thatis note as iy seen except under close examination .
Once the proper flare has been achieved loosen the push bolt completely
Loosen the alignment bolt to remove the tool from the chain .
Refer to the chain manufacturer 's specifications and measure the amount of flare.If more flare is requiredrestart atstep1.
Viktec offers a high-quality Demolition Chain Breaker and Riveting Tool Set Motorcycle Tool Set(VTN1420). All our tools have at least a one-year quality guarantee. If you need more information about our Demolition Chain Breaker and Riveting Tool Set Motorcycle Tool Set(VTN1420), please do not hesitate to e-mail or call us. Your inquiry will be replied to within 24 hours.
