Sprocket assembly jig
Rigid chain tensioner (cylindrical black/threaded item in photo).
Chain tensioner lock pin.
VANOS compressed air connector (top right of the case in photo).

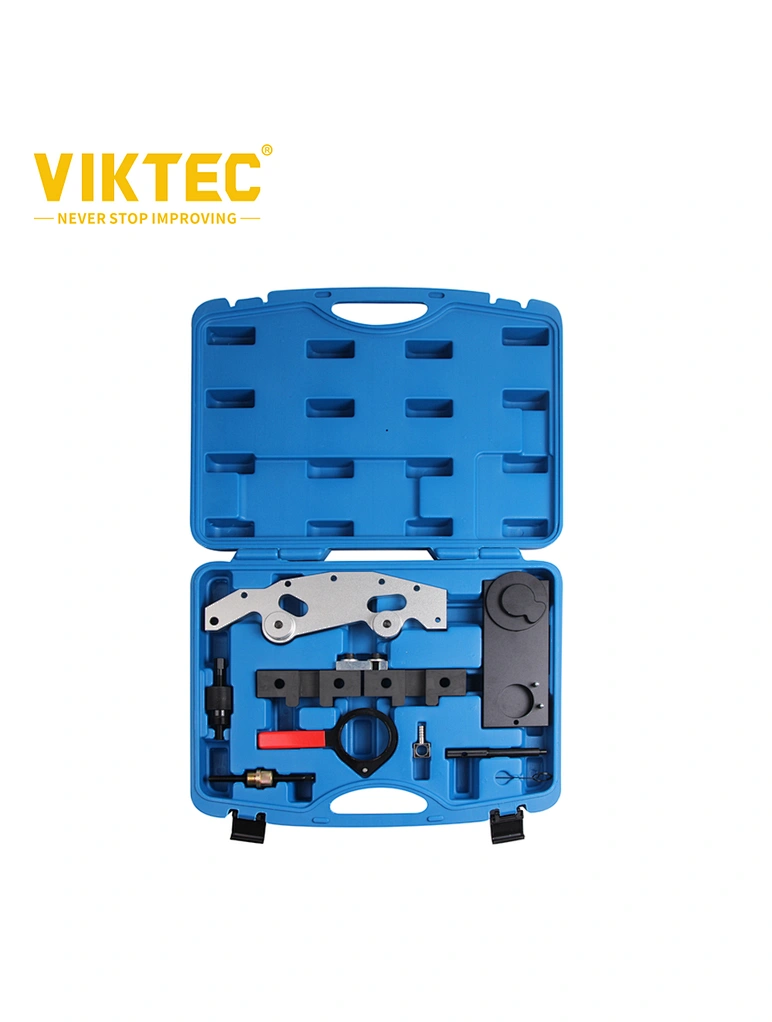

- Master tool set contains a comprehensive set of tools to perform camshaft + VANOS timing on M52TU, M54, M56 Engines.
- The tools are also applicable for camshaft timing on non-VANOS engines (M42, M44, M50, M52, MS50US and S52US).
- This kit contains all the tools necessary to assemble and time the VANOS cam-timing units on BMW M52TU, M54 and M56 6-cylinder engines utilized from 1998 onwards.
Pieces included:
- Alignment jig (large aluminum item in photo).
- Sprocket assembly jig
- Rigid chain tensioner (cylindrical black / threaded item in photo).
- Chain tensioner lock pin.
- VANOS compressed air connector (top right of case in photo).
- BMW VANOS Sprocket Wrench M50 M52 S50 S52:
Special wrench designed specifically to turn camshaft sprockets when removing or installing the VANOS variable valve timing unit.
- BMW 4 & 6 Cylinder Camshaft Alignment / Timing Tools:
This tool kit contains all the necessary, engine-specific tools to time the camshafts in BMW M42, M44, M50, M52, M52TU, M54, M56, MS50US and S52US engines.
Includes: Camshaft alignment jig to fix the camshafts in the proper orientation during assembly and Top dead center pin to align the flywheel at the TDC position.
Can be used on:
M52TUB25
1997-2001 E46 323i/323Ci/323ti (M52T)
1998-2001 E39 523i (M52TU)
1998-2001 E36/7 Z3 (M52TU)
-M52TUB28
1997-2001 E46 328i/328Ci (M52TU)
1997-2001 E36/7 Z3 2.8 (M52B28/Z3)
1998-2001 E39 528i (M52TU)
1998-2001 E38 728i (M52TU)
-M54B22
2001-2003 E46 320i/320Ci
2001-2003 E39 520i
2001-2002 E36 Z3 2.2i
2003-2005 E85 Z4 2.2i
2003-2005 E60/E61 520i
-M54B25
2001-2002 E36/7 Z3 2.5i
2001-2005 E46 325i/325xi
2001-2006 E46 325Ci
2001-2004 E46 325ti
2001-2004 E39 525i
2003-2004 E60/E61 525i/525xi
2004-2006 E83 X3 2.5i
2004-2006 E85 Z4 2.5i
-M54B30
2001-2005 E46 330i/330xi
2001-2006 E46 330Ci
2001-2003 E39 530i
2001-2002 E36 Z3 3.0i
2003-2005 BMW E60 530i
2003-2006 E85 Z4 3.0i
2004-2006 E83 X3 3.0i
2001-2006 E53 X5 3.0i
