1. Functions

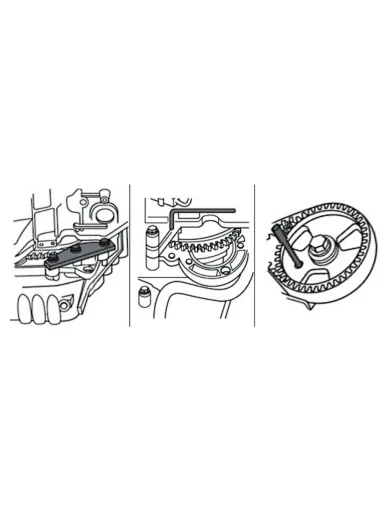

Lock camshafts, crankshafts and flywheels; maintain correct timing position of camshafts and crankshafts during timing belt replacement; inspect and adjust engine timing for specified vehicles.
2. Specifications
2.1 Applicable Vehicles & Engine Codes
Citroen: C4 (2004-2010), C5 II (2004-2010) - Engine code: DW10BTED4/RHR
Ford: S Max 2.2 (2008-2010), Galaxy 2.2 (2008-2010), Mondeo 2.2/2.0 (2007-2010) - Engine codes: QXBA (2.2), QXWA (2.0), QXBB (2.0), Q4BA (2.2), QXWB (2.0), AZBA (2.0), AZBC (2.0), AZWA (2.0)
Land Rover: Freelander (2006-2010) - Engine code: DW12BTED4/224DT
Peugeot: 807 (2005-2011), 407 (2005-2011), 607 (2005-2009) - Engine codes: DW10UTED4/RHK, DW10BTED4/RHR, DW12BTED4/4HS/4HP/4HT/4HR
Volvo: S40 (2003-2010), V50 (2006-2010), C70 (2006-2010), S80 (2007-2010), C30 (2006-2010), V70 (2007-2010) - Engine code: D420T 2.0D
2.2 Applicable Engines
2.0L and 2.2L DOHC (Duratorq) common rail diesel engines
2.3 Included Tools & OEM Information

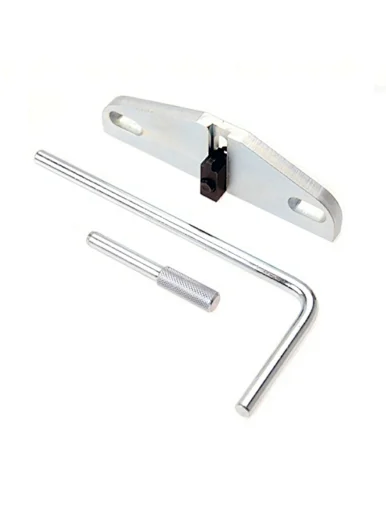

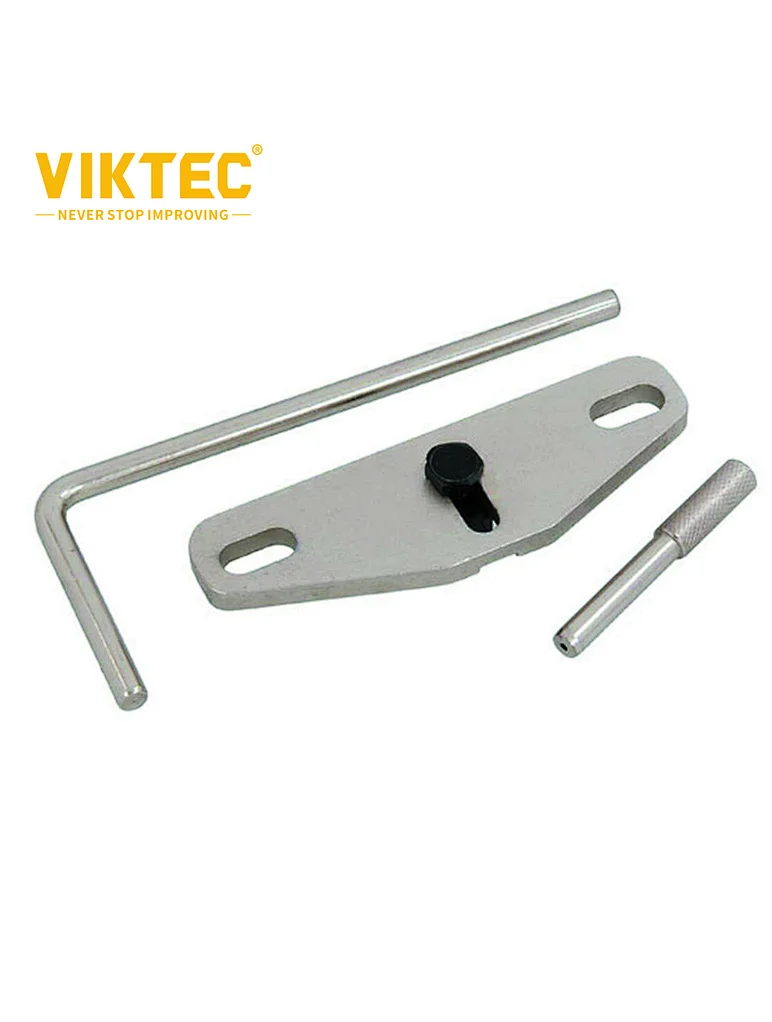

Camshaft Locking Tool (OEM: PSA 0188.M, Ford 303-735, Volvo 999-7122), Crankshaft Locking Tool (OEM: PSA 0188.X, Ford 303-1059, Volvo 999-7121), Flywheel Locking Tool (OEM: PSA 0188.F, Ford 303-393A/303-393-01, Volvo 999-7119/7120)
3. Features
1. Specialized for 2.0L and 2.2L DOHC (Duratorq) common rail diesel engines, compatible with Citroen, Ford, Land Rover, Peugeot and Volvo models.
2. Integrates camshaft, crankshaft and flywheel locking functions, ensuring correct timing position during timing belt replacement.
3. Supports engine timing inspection and adjustment, meeting comprehensive maintenance needs.
4. OEM-matched tools guarantee precise positioning and high compatibility with original engine components.
