Fiat ECU 6 pcs Cables for FIAT ECU Scan and Multiecuscan Adaptor Six Colours Diagnostic Adapter Cable
VT18990
Product appearance is for reference only, subject to the actual product
Designed to meet the requirements of the Multiecuscan diagnostic system, the product is perfectly compatible with the Multiecuscan/ for Fiat ECUScan.
Designed to meet the requirements of the Multiecuscan diagnostic system, the product is perfectly compatible with the Multiecuscan/ for Fiat ECUScan.
Quantity
eature:

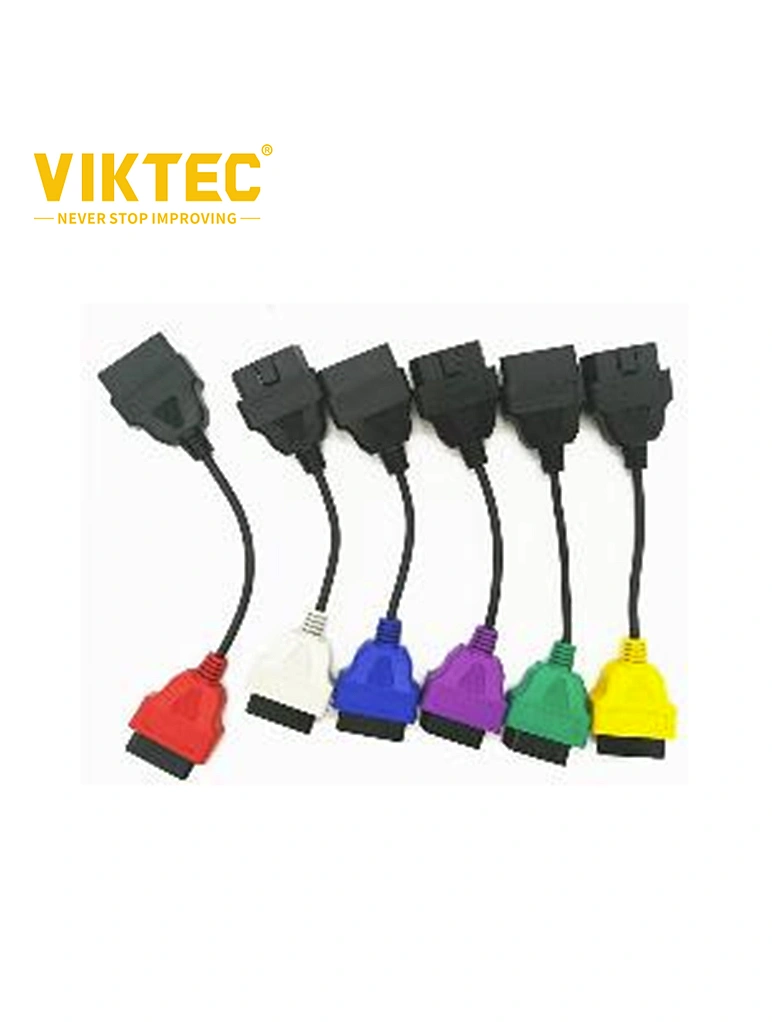

Green Adaptor Lead (MultiECUScan / for Fiat EcuScan Adaptor 1) = Engine, ABS, Power Steering
Red Adaptor Lead (MultiECUScan / for Fiat EcuScan Adaptor 2) = Airbag
Yellow Adaptor Lead (MultiECUScan / for Fiat EcuScan Adaptor 3) = CAN
Purple Adaptor Lead (MultiECUScan / for Fiat EcuScan Adaptor 4) = Electric Hood
Blue Adaptor Lead(MultiECUScan / for Fiat EcuScan Adaptor 5)= Control Module
Gray Adaptor Lead(MultiECUScan / for Fiat EcuScan Adaptor 6)= base control module
Green Adaptor Lead (MultiECUScan / for Fiat EcuScan Adaptor 1) = Engine, ABS, Power Steering
Red Adaptor Lead (MultiECUScan / for Fiat EcuScan Adaptor 2) = Airbag
Yellow Adaptor Lead (MultiECUScan / for Fiat EcuScan Adaptor 3) = CAN
Purple Adaptor Lead (MultiECUScan / for Fiat EcuScan Adaptor 4) = Electric Hood
Blue Adaptor Lead(MultiECUScan / for Fiat EcuScan Adaptor 5)= Control Module
Gray Adaptor Lead(MultiECUScan / for Fiat EcuScan Adaptor 6)= base control module
Pin Configurations:
Green Adaptor Lead = Female pin 7 to male pins 1,7,9,12.
Red Adaptor Lead = Female pin 7 to male pin 3
Yellow Adaptor Lead = Female pin 6 to male pin 1 / Female pin 14 to male pin 9 / Female pin 7 to male pin 12
Purple Adaptor Lead = Female pin 7 to male pins 7,8,11,13
Green Adaptor Lead = Female pin 7 to male pins 1,7,9,12.
Red Adaptor Lead = Female pin 7 to male pin 3
Yellow Adaptor Lead = Female pin 6 to male pin 1 / Female pin 14 to male pin 9 / Female pin 7 to male pin 12
Purple Adaptor Lead = Female pin 7 to male pins 7,8,11,13
