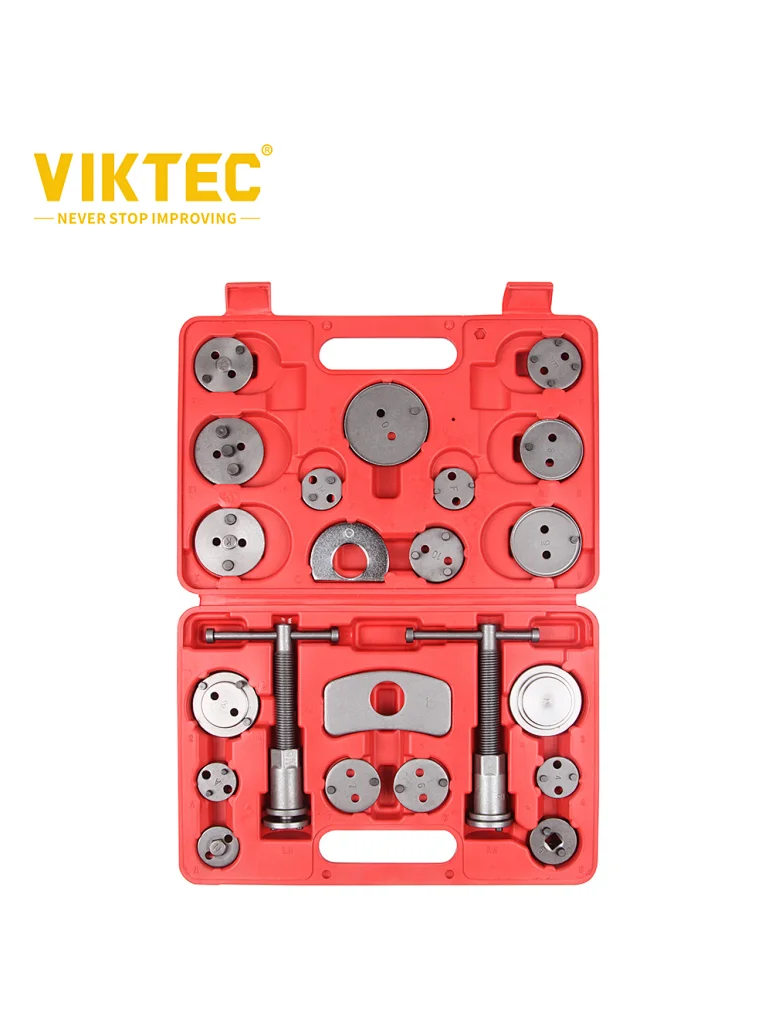

VIKTEC 22PC Brake Piston Wind Back Tool Kit
VT01027B
Retracts brake caliper pistons to facilitate replacement of new brake pads and brake discs, suitable for maintenance of multiple vehicle models .
Equipped with right-hand and left-hand threaded spindles to adapt to different piston rotation direction requirements .
Equipped with right-hand and left-hand threaded spindles to adapt to different piston rotation direction requirements .
Quantity
1.Functions
Retracts brake caliper pistons to facilitate replacement of new brake pads and brake discs, suitable for maintenance of multiple vehicle models .
Retracts brake caliper pistons to facilitate replacement of new brake pads and brake discs, suitable for maintenance of multiple vehicle models .
2. Specifications
Item type: Brake caliper piston wind-back tool set
Package includes: 2×spindles (1×right-hand threaded, 1×left-hand threaded), 2×reaction plates, 18×adapters
Main adapter specifications & applicable models:
Adapter 0: 2-1/2 inch one-pin adapter (Opel)
Adapter 2: 2-1/64 inch one-pin adapter (Citroen XM, Xantia F/R)
Adapter 3: 2-5/32 inch three-pin adapter (Audi, BMW, Mercedes Benz, Toyota, VW, etc.)
Adapter 4: 1-1/4 inch adapter (Ford, Mazda, Saab, Honda, etc.)
Adapter 6: 1-21/32 inch two-pin adapter (Nissan Primera, VW Golf IV)
Adapter 7: 1-21/32 inch two-pin adapter (Audi 80/90, Ford Sierra, Toyota Celica, VW Golf, etc.)
Adapter 8: 1-7/8 inch one-pin adapter (Opel, General Motors)
Adapter 9: 2-1/8 inch one-pin adapter (Opel, General Motors, Cadillac)
Adapter IV: 1-37/64 inch three-pin adapter (Ford Focus, Renault, Volvo V70, VW Passat)
Adapter E: 1-21/32 inch four-pin adapter (Nissan Cefiro/Maxima)
Adapter G: 1-1/4 inch two-pin adapter (Opel)
Adapter K: 2-1/8 inch two-pin adapter (Citroen C5)
Adapter M: 1-1/4 inch two-pin adapter (Ford)
Adapter N: 1-1/4 inch adapter (Saab, Honda)
Adapter Z: 1-3/16 inch two-pin adapter (Renault R21/Laguna)
Adapter 5: 3/8 inch adapter
Item type: Brake caliper piston wind-back tool set
Package includes: 2×spindles (1×right-hand threaded, 1×left-hand threaded), 2×reaction plates, 18×adapters
Main adapter specifications & applicable models:
Adapter 0: 2-1/2 inch one-pin adapter (Opel)
Adapter 2: 2-1/64 inch one-pin adapter (Citroen XM, Xantia F/R)
Adapter 3: 2-5/32 inch three-pin adapter (Audi, BMW, Mercedes Benz, Toyota, VW, etc.)
Adapter 4: 1-1/4 inch adapter (Ford, Mazda, Saab, Honda, etc.)
Adapter 6: 1-21/32 inch two-pin adapter (Nissan Primera, VW Golf IV)
Adapter 7: 1-21/32 inch two-pin adapter (Audi 80/90, Ford Sierra, Toyota Celica, VW Golf, etc.)
Adapter 8: 1-7/8 inch one-pin adapter (Opel, General Motors)
Adapter 9: 2-1/8 inch one-pin adapter (Opel, General Motors, Cadillac)
Adapter IV: 1-37/64 inch three-pin adapter (Ford Focus, Renault, Volvo V70, VW Passat)
Adapter E: 1-21/32 inch four-pin adapter (Nissan Cefiro/Maxima)
Adapter G: 1-1/4 inch two-pin adapter (Opel)
Adapter K: 2-1/8 inch two-pin adapter (Citroen C5)
Adapter M: 1-1/4 inch two-pin adapter (Ford)
Adapter N: 1-1/4 inch adapter (Saab, Honda)
Adapter Z: 1-3/16 inch two-pin adapter (Renault R21/Laguna)
Adapter 5: 3/8 inch adapter
3. Features
Equipped with right-hand and left-hand threaded spindles to adapt to different piston rotation direction requirements .
Includes reaction plates and 18 multi-spec adapters (with 1-pin, 2-pin, 3-pin, 4-pin designs) for precise alignment with various vehicle piston structures .
Equipped with right-hand and left-hand threaded spindles to adapt to different piston rotation direction requirements .
Includes reaction plates and 18 multi-spec adapters (with 1-pin, 2-pin, 3-pin, 4-pin designs) for precise alignment with various vehicle piston structures .
